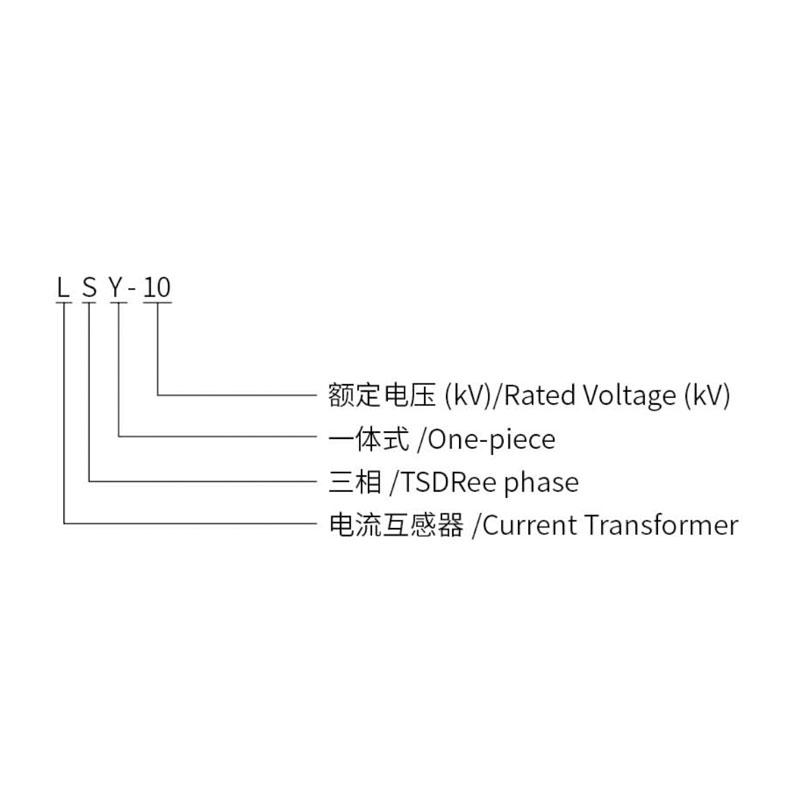

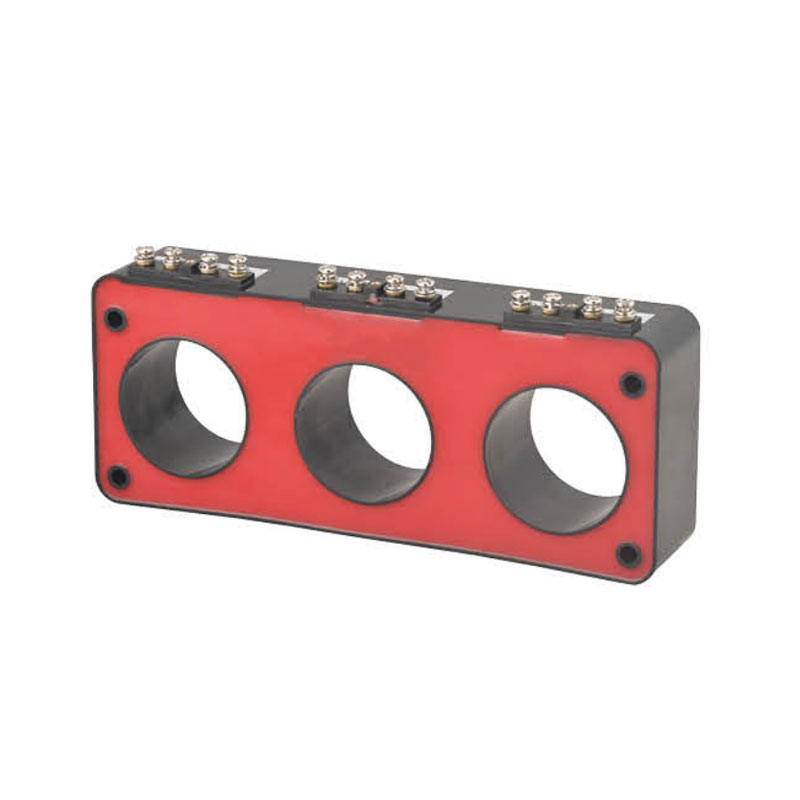

LSY-107/10 Three-Phase Inflatable Cabinet Special Current Transformer

The special current transformer for the three-phase inflatable cabinet has precise current measurement capabilities and can accurately monitor the size and changes of the three-phase current. This helps to detect abnormalities in the power system in time and take necessary measures to ensure the safe operation of the system.

This type of current transformer usually has a small size and weight and can be arranged and installed in a limited space. This is particularly important for high-pressure equipment such as inflatable cabinets, which often need to be installed in space-constrained environments.

Special current transformers for three-phase inflatable cabinets usually adopt a closed design and have good insulation and protection properties. This design can effectively prevent the impact of the external environment on the transformer and ensure its long-term stable and reliable operation.

Since the special current transformer for three-phase inflatable cabinets can accurately measure three-phase current, it can provide more comprehensive and reliable monitoring and protection for high-voltage equipment such as inflatable cabinets, reducing the risk of system failure.

use	Measuring current transformer			Protection current transformer			Double winding current transformer
Rated primary current(A)	Accuracy and rated load (VA)			Accuracy and rated load (VA)			Composite accuracy and rated load (VA)
	0.2S	0.2	0.5	10P20	10P15	10P10	0.2S	0.5	10P15	10P10
50			1			1		1
75			1			1		1		1
100			2.5			1		1		1
150			2.5			2.5		1.5
200		2.5	2.5			5		2.5		5
300	2.5	2.5	5			5		2.5		5
400	5	5	5			5		5		5
500	5	5	5			5		5		5
600	5	5	5			5		5		5
800,1000,1200	10	10	10			10		5		5

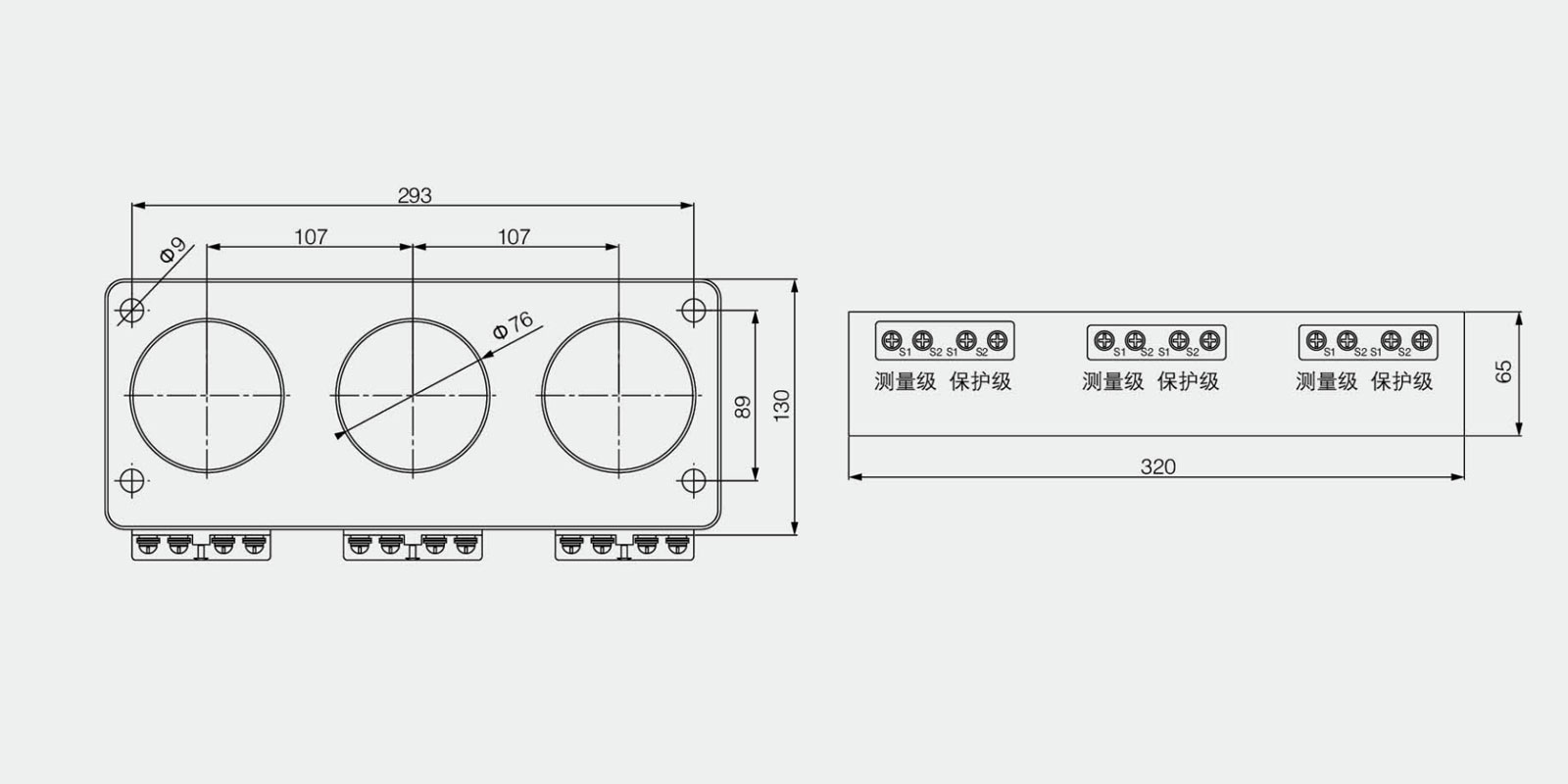

Outline Dimension(mm)
