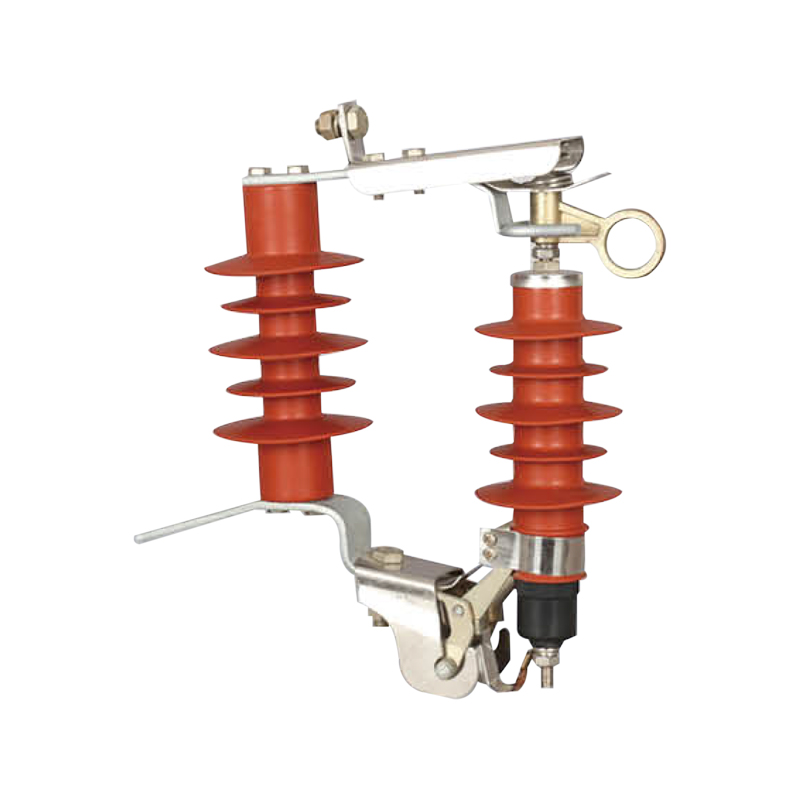

HY5WS-17/0DL-TB (TR (detachable) drop-type arrester is a distribution-type zinc oxide arrester that is modified and cleverly installed on the drop-type structure of a drop-out fuse, so that it can The lightning arrester can be easily detected, repaired and replaced with the help of the insulated switching operating rod, which not only ensures the smooth flow of lines, but also greatly reduces the work intensity and time of power maintenance personnel. It is especially suitable for places where power outages are not suitable, such as postal and telecommunications. Airport stations, hospitals, bustling business districts, etc. The other performance of the product is the same as that of the distribution type arrester. The second generation drop-type arrester adds a disconnector. When an abnormality occurs in the arrester, the power frequency short-circuit current is used to make the disconnector operate. The grounding terminal is automatically disconnected, and the arrester element falls down. It exits operation to prevent further expansion of the accident, and is easy for maintenance personnel to detect and repair and replace in time. The falling principle is similar to the fuse tube falling down caused by the fuse of the fuse being blown.
Product structure characteristics
●The lightning arrester unit can be loaded and unloaded at any time while it is powered, and is especially suitable for places where power outages are unfavorable.
●With disconnector, when the arrester unit fails, it can automatically fall down and exit operation to ensure the normal passage of the line.
●Due to the failure, the unit will fall over and form an obvious mark, making it easy to find and repair and replace in time.
●The lightning arrester adopts a composite jacket, and the drop mechanism adopts a composite pillar, which has good hydrophobicity and strong stain resistance.
Use environmental conditions
●Ambient temperature: -40°C ~+40°C;
●The altitude is not more than 3000m;
●Power frequency: 48Hz~62Hz;
●The maximum wind speed does not exceed 35m/s;
●Areas with earthquake intensity of 7 degrees and below.
Arrester model |
System rated voltage |
Arrester rated voltage |
Continuous operating voltage |
DC reference voltage |
0.75U1mA leakage current |
Residual electricity under lightning surge current |
Residual electricity under operating surge current |
Square wave flow capacity |
High current surge resistance |
Place of use |
kV(r.m.s) |
<kV |
<μV |
>μV |
<A |
<kA |
|
HY5WS-10/30DL |
6 |
10 |
8.0 |
15.0 |
30 |
30 |
25.6 |
150 |
40 |
Distribution |
HY5WS-10/30DL-TR |
HY5WS-10/30DL-TB |
HY5WS-17/520DL |
10 |
17 |
13.6 |
25.0 |
30 |
50 |
42.5 |
150 |
40 |
DistributIon |
HY5WS-17/50DL-TR |
HY5WS-17/50DL-TB |
Note: The parameters of the arrester are the same as those of conventional arresters. The above ones are distribution types and can be replaced by other types such as capacitive type.
Installation instructions:
●This product should be installed on lines of systems and equipment whose rated voltage is consistent with the rated voltage of the arrester.
●Please check the tightness between the arrester component and the drop-type mechanism before installation and use to ensure good contact and flexible delivery and removal.
●Adjustment method: Rotate the copper contact (with pull ring) on the arrester so that the opening pull force is within 6~10kg, and ensure that the pull ring side of the copper contact is facing outward, and then tighten the lower nut to make the pull ring difficult to rotate. .
●When installing, the arrester and the plumb line should be at an angle of 15 to 30 degrees, and the distance should be no less than 200mm.
