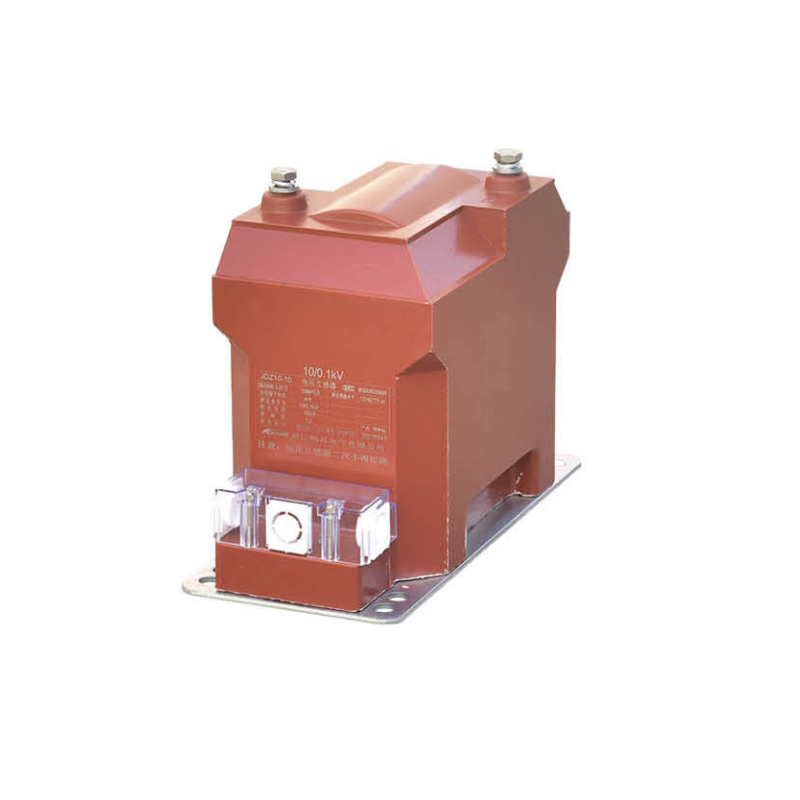

Generally, the primary winding of a single-phase voltage transformer is connected to the high-voltage side of the circuit under test to induce high-voltage signals; while the secondary winding is connected to measuring instruments or protective equipment to output corresponding low-voltage signals. By converting the ratio, the single-phase voltage transformer can convert the high-voltage signal into a proportional low-voltage signal to facilitate the use of measurement and protection equipment.
The main features of single-phase voltage transformers include:
High precision: Single-phase voltage transformers have high measurement accuracy and can accurately output low-voltage signals proportional to the voltage in high-voltage circuits.
High reliability: Made of high-quality materials and advanced technology, it has strong anti-interference ability and stability, ensuring the reliability and stability of the equipment.
Compact structure: It usually adopts lightweight design and compact structure, takes up less space and is easy to install and wire.
Various installation methods: Single-phase voltage transformers can be installed in different installation methods according to needs, such as plug-in type, fixed type, etc., to adapt to different power system layouts and needs.
High insulation level: It has good insulation performance and can ensure safe operation in high voltage environments.

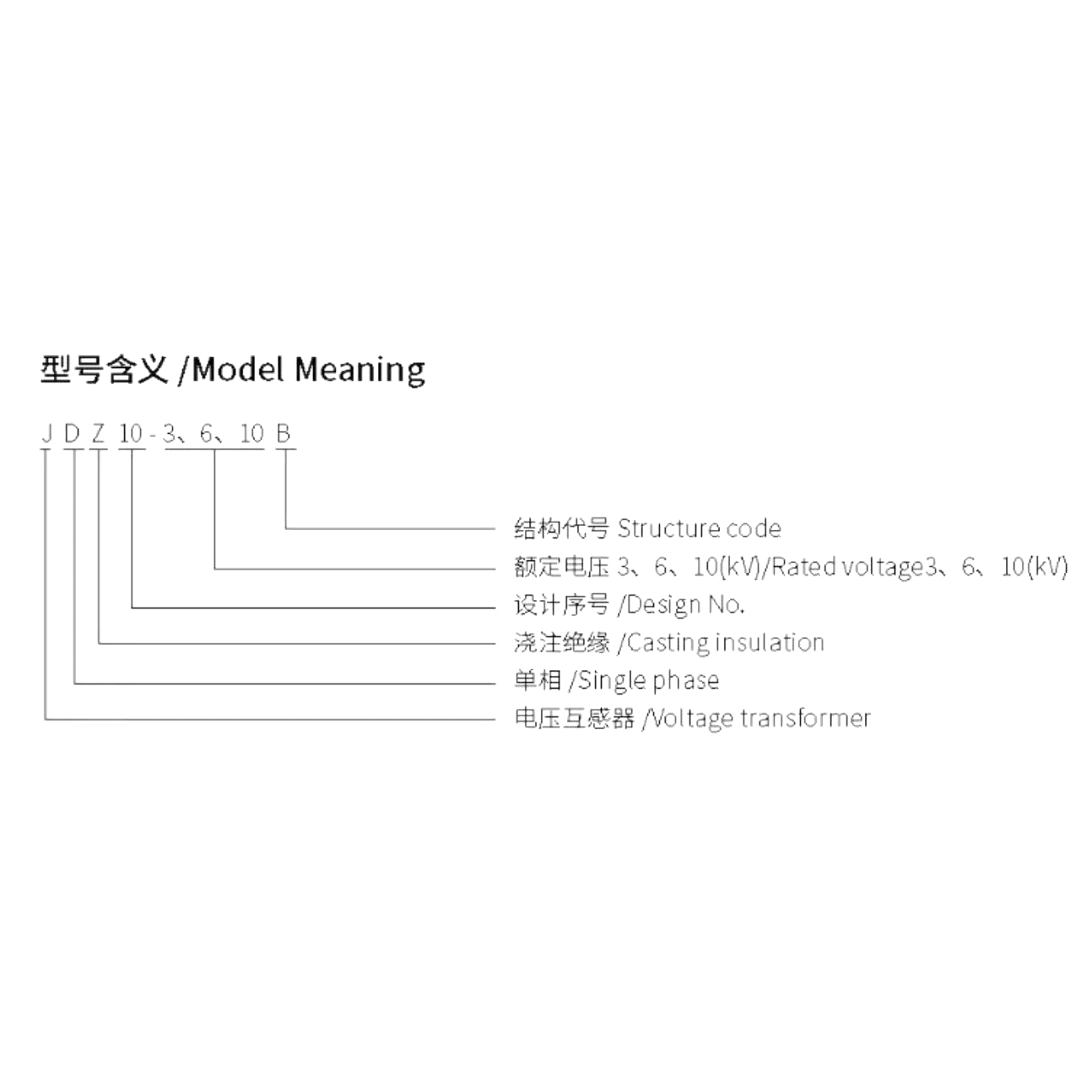

Technical parameter table
Type |
Rated voltage ratio(V) |
Accuracy class and accuracy class combination |
Rated output(VA) |
Limit puput (VA) |
Rated insulating level(kV) |
Renark |
0.2 |
0.5 |
1 |
JDZ10-3A |
3000/100 |
0.2 0.5
|
15 |
30 |
60 |
200 |
3.6/25/40 |
RZL |
JDZ10-6A |
6000/100 |
7.2/30/60 |
JDZ10-10A |
10000/100 |
12/42/75 |
JDZ10-10A |
10000/100/100 |
0.2/0.2 |
10/10 |
20/20 |
60 |
200 |
|
|

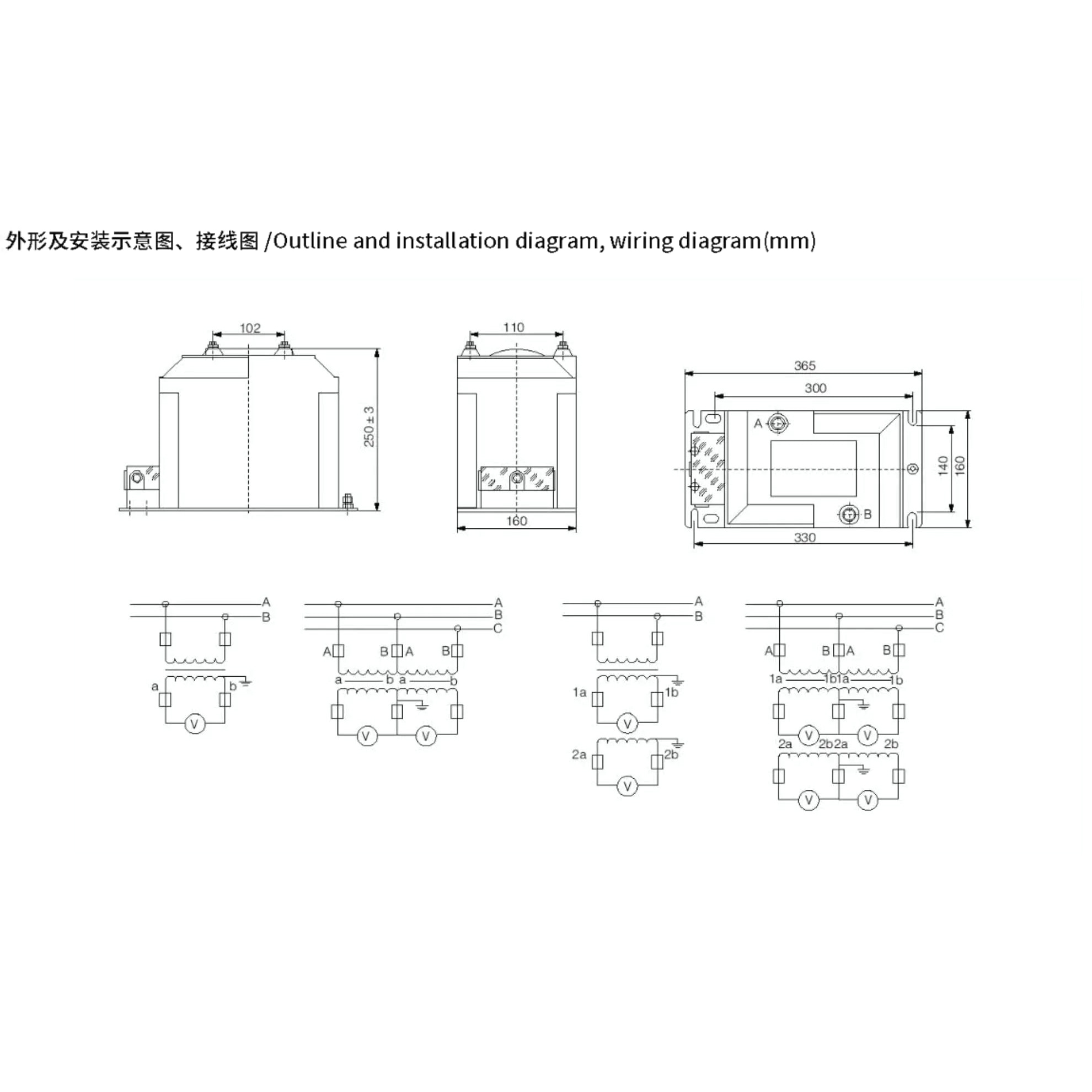

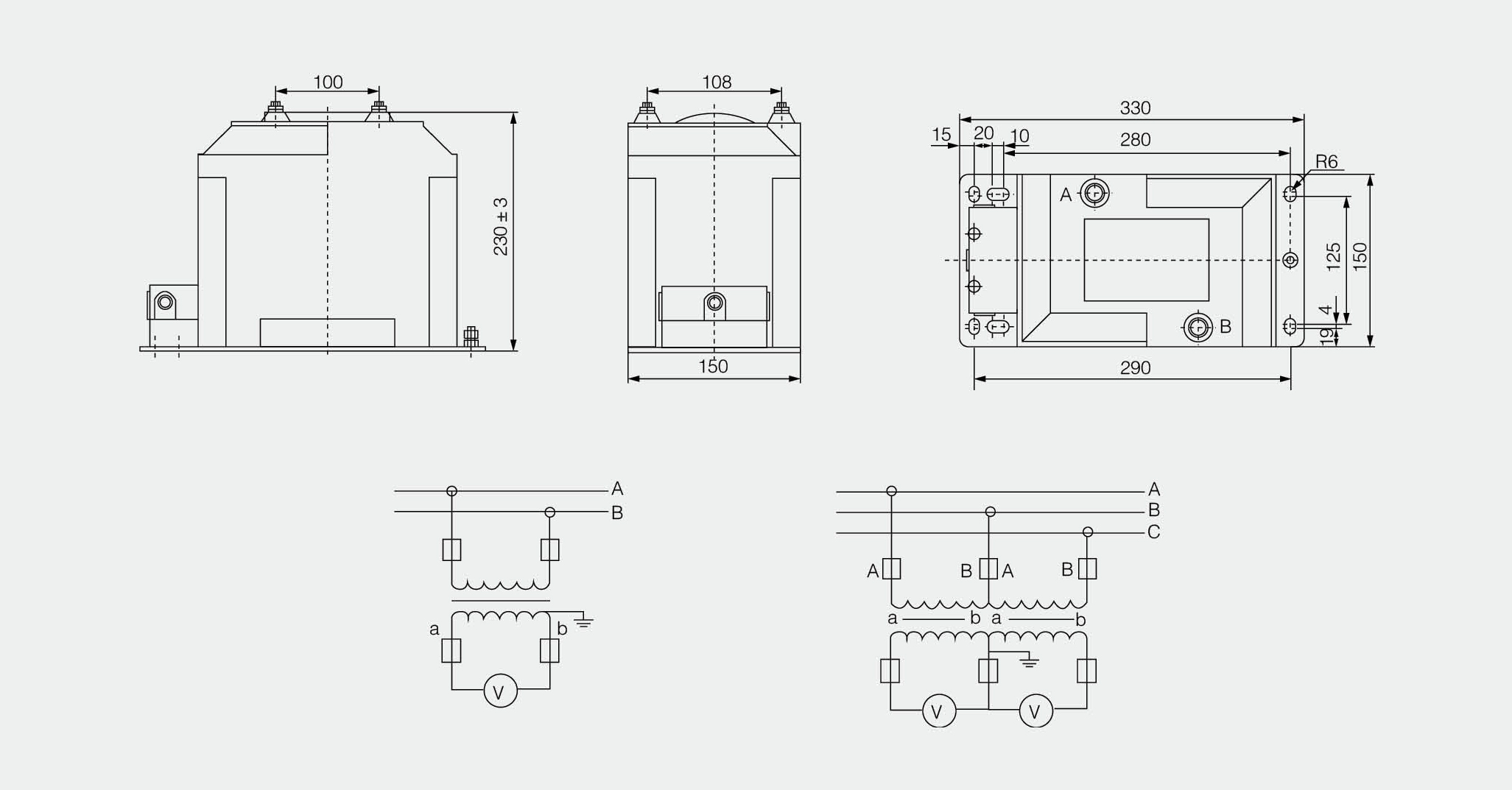

Outline and installation diagram, wiring diagram(mm)
