LZZB9-35 Thread Current Transformer

Threaded current transformers are typically epoxy or oil-immersed in design to provide good insulation properties and mechanical strength. This design enables the transformer to withstand the effects of high voltage and harsh environments, ensuring its safe and reliable operation.

The installation of threaded current transformers is very simple. Just fix the threaded part on the wire or cable to complete the installation process. This convenient installation method allows the transformer to be put into use quickly and improves work efficiency.

Threaded current transformers have the characteristics of high precision and stability, and can accurately measure current and convert it into a standard signal output proportional to it for use in monitoring, protection and control systems.

Due to their compact size and convenient installation, threaded current transformers are often used in small spaces or in places that require dense layout, such as distribution boxes, control cabinets, etc.

PRODUCT PARAMETER

Primary current	Accuracy level combination	Rated secondary output（VA）			1s thermal current (kA)	Dynamic stable current (kA)
		0.2	0.5	10P20
20-100	0.5/10P10 001S/0.2 0.2/0.2 0.2/0.5 0.5/0.5 0.2/5P20 0.5/5P20 0.2S/0.5/10P20	10	15	15	200lin	500lin
150-200					31.5	80
300-500					31.5/2
600-1250		15	30	20	31.5/4
1500-2000	0.2S/10P20	20	40	30	40/4	125
2500		20	40	20

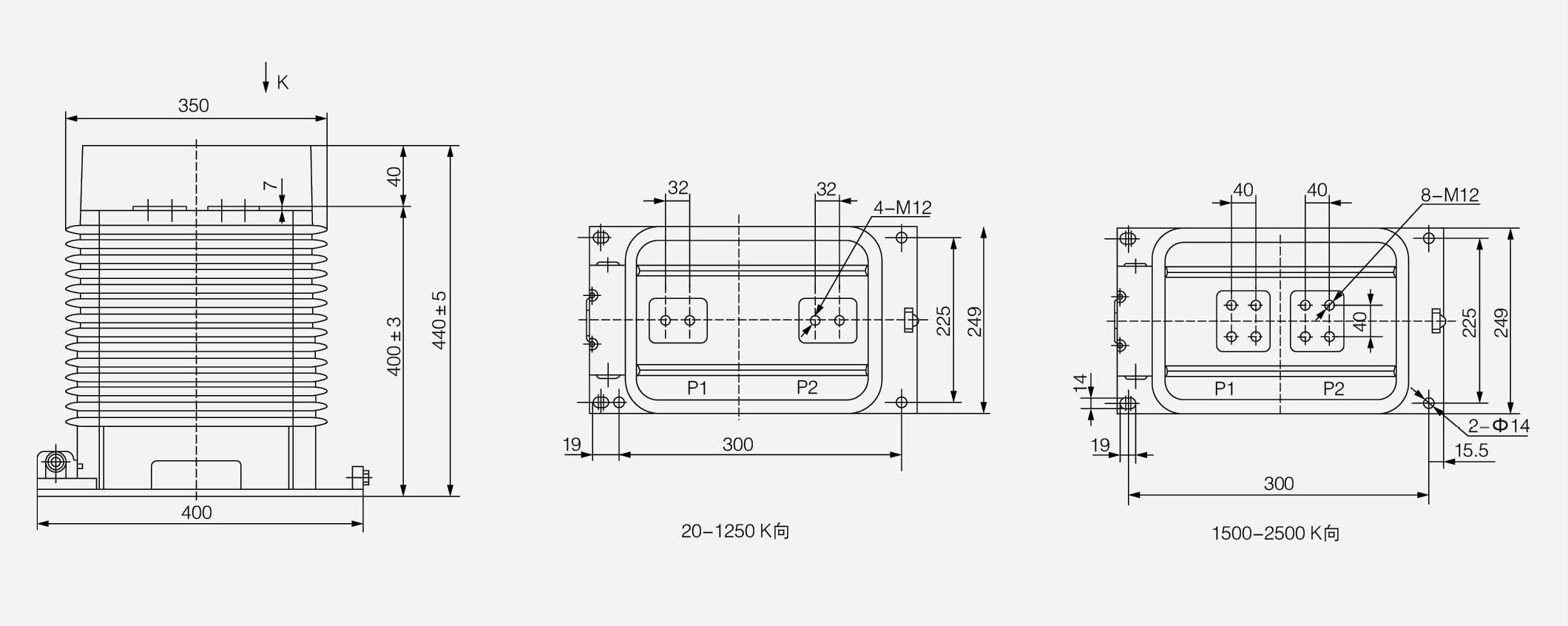

Outline and installation size (mm)
